IP4302CX2A Datasheet - NXP

Low profile bidirectional low capacitance ESD protection diode

IP4302CX2A Features

* Pb-free, RoHS compliant and free of halogen and antimony (Dark Green compliant)

* Bidirectional ESD protection of one line

* Integrated ESD protection withstanding 15 kV contact discharge, far exceeding IEC 61000-4-2 level 4

* Ultra low height of 0.40 mm only

* 0.52 mm  0.7 m

IP4302CX2A General Description

The IP4302CX2/A is a bidirectional diode which is designed to provide protection to downstream components from ElectroStatic Discharge (ESD) voltages as high as 15 kV contact discharge according to the IEC 61000-4-2 model, far exceeding standard level 4. The device is fabricated using monolithic si.

IP4302CX2A Datasheet (395.24 KB)

Preview of IP4302CX2A PDF

Datasheet Details

Part number:

IP4302CX2A

Manufacturer:

NXP ↗

File Size:

395.24 KB

Description:

Low profile bidirectional low capacitance esd protection diode.

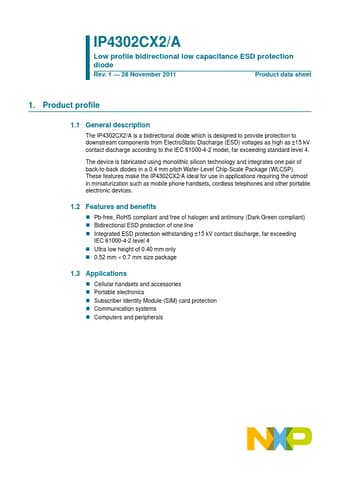

www.DataSheet.co.kr IP4302CX2/A Low profile bidirectional low capacitance ESD protection diode Rev. 1 28 November 2011 Product data shee.
