IP4309CX9 Datasheet - NXP

HDMI octal channel low capacitive high-performance ESD protection

IP4309CX9 Features

* Pb-free, Restriction of Hazardous Substances (RoHS) compliant and free of halogen and antimony (dark green compliant)

* 8 ultra low input capacitance rail-to-rail ESD protection diodes with CI/O = 1.3 pF

* Rdyn = 0.45 

* Downstream ESD protection up to 15 kV (contact), exceeding

IP4309CX9 General Description

The IP4309CX9 is a 8-channel low capacitance ElectroStatic Discharge (ESD) protection device, providing protection to downstream components from ESD voltages up to 15 kV contact discharge and higher than 15 kV air discharge, far exceeding IEC 61000-4-2, level 4. The device is optimized for the pro.

IP4309CX9 Datasheet (458.28 KB)

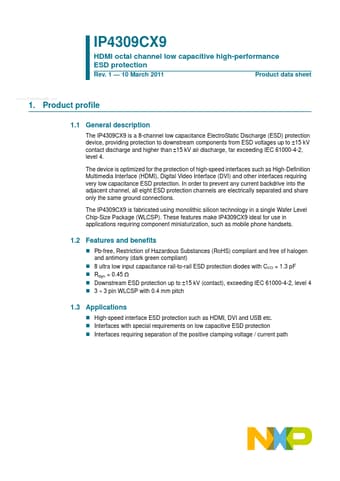

Preview of IP4309CX9 PDF

Datasheet Details

Part number:

IP4309CX9

Manufacturer:

NXP ↗

File Size:

458.28 KB

Description:

Hdmi octal channel low capacitive high-performance esd protection.
IP4309CX9 HDMI octal channel low capacitive high-performance ESD protection Rev. 1 10 March 2011 Product data sheet www.DataSheet4U.net 1..
