IP4366CX8 - (IP4064CX8 - IP4366CX8) Integrated SIM card passive filter array

NXP Semiconductors

📥 Download Datasheet

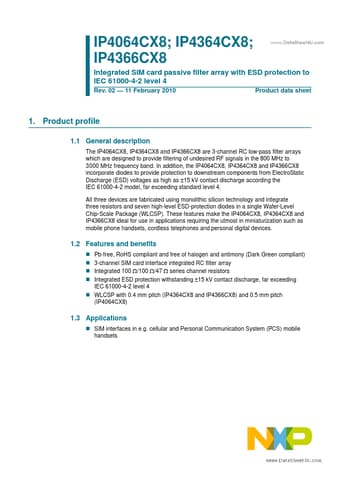

IP4366CX8 Datasheet Preview — Preview of IP4366CX8 PDF

Datasheet Details

Part number: IP4366CX8
Manufacturer: NXP ↗ Semiconductors
File Size: 208.68 KB
Datasheet: IP4366CX8_NXPSemiconductors.pdf
Description: (IP4064CX8 - IP4366CX8) Integrated SIM card passive filter array

IP4366CX8 Product details

Description

The IP4064CX8, IP4364CX8 and IP4366CX8 are 3-channel RC low-pass filter arrays which are designed to provide filtering of undesired RF signals in the 800 MHz to 3 000 MHz frequency band.

Features

Pb-free, RoHS compliant and free of halogen and antimony (Dark Green compliant) 3-channel SIM card interface integrated RC filter array Integrated 100 Ω/100 Ω/47 Ω series channel resistors Integrated ESD protection withstanding ±15 kV contact discharge, far exceeding IEC 61000-4-2 level 4.
WLCSP with 0.4 mm pitch (IP4364CX8 and IP4366CX8) and 0.5 mm pitch (IP4064CX8) 1.3.
