TDA18218HN Datasheet - NXP Semiconductors

TDA18218HN - DVB-T Silicon Tuner IC

The TDA18218HN is a Silicon Tuner IC designed for digital terrestrial (DVB-T) TV reception.

The TDA18218HN integrates the overall tuning function, including selectivity and provides a low-IF output signal.

The TDA18218HN uses integrated IF filters to support 6 MHz, 7 MHz or 8 MHz channel bandwidths.

TDA18218HN Features

* I I I I I I I I I I I I Fully integrated IF selectivity; eliminating the need for external SAW filters Fully integrated oscillators with no external components Integrated wideband gain control Alignment free RF loop-through for easy implementation in the Set-Top Box (STB) Integrated die thermal senso

TDA18218HN_NXPSemiconductors.pdf

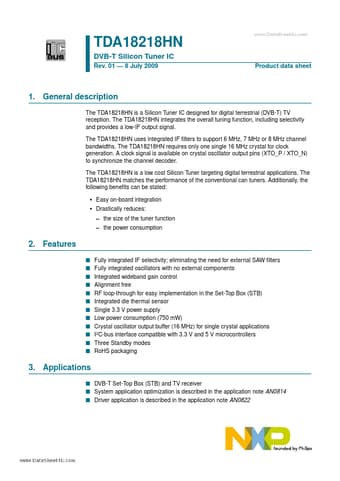

Preview of TDA18218HN PDF
TDA18218HN Datasheet Preview Page 2 TDA18218HN Datasheet Preview Page 3

Datasheet Details

Part number:

TDA18218HN

Manufacturer:

NXP ↗ Semiconductors

File Size:

169.98 KB

Description:

Dvb-t silicon tuner ic.
