TDA18273HN, Hybrid (analog and digital) Silicon Tuner

TDA18273HN Hybrid (analog and digital) Silicon Tuner for terrestrial and cable TV reception Rev.2 * 15 December 2010 Preliminary data sheet .
The TDA18273HN is a high performance Silicon Tuner designed for terrestrial and cable TV reception for both analog and digital signals.

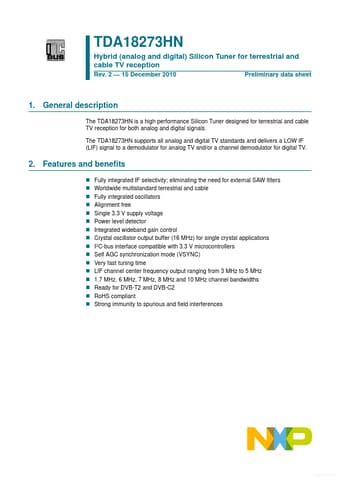

datasheet Preview Page 1 from Datasheet4u.com

TDA18273HN_NXP.pdf

TDA18273HN Datasheet Preview — Preview of TDA18273HN PDF

Datasheet Details

Part number:

TDA18273HN

Manufacturer:

NXP ↗

File Size:

99.09 KB

Description:

Hybrid (analog and digital) Silicon Tuner

Features

* Fully integrated IF selectivity; eliminating the need for external SAW filters Worldwide multistandard terrestrial and cable Fully integrated oscillators Alignment free Single 3.3 V supply voltage Power l

Applications

* I2C-bus interface compatible with 3.3 V microcontrollers Self AGC synchronization mode (VSYNC) Very fast tuning time LIF channel center frequency output ranging from 3 MHz to 5 MHz 1.7 MHz, 6 MHz, 7 MHz, 8 MHz and 10 MHz channel bandwidths Ready for DVB-T2 and DVB-C2 RoHS compliant Strong immunity t
