TDA18211HD - DVB-T Silicon Tuner IC

TDA18211HD Description

TDA18211HD DVB-T Silicon Tuner IC Rev.05 * 2 June 2009 Product data sheet 1.General .
The TDA18211HD is a Silicon Tuner IC designed for digital terrestrial (DVB-T) TV reception.

TDA18211HD Features

* I I I I I I I I I I I I I I Fully integrated RF tracking filters for unwanted signal suppression Fully integrated IF selectivity (no need for external SAW filters) Fully integrated oscillators with no external components Integrated wideband gain control Alignment free RF loop-through for easy implemen

TDA18211HD Applications

* I2C-bus interface compatible with 3.3 V and 5 V microcontrollers Three Standby modes RoHS packaging 3. Applications 3.1 Target applications I DVB-T Set-Top-Box (STB) and TV receiver I Application optimization is described in the application notes Free Datasheet http://www. datasheet4u. com/ NXP Sem

📥 Download Datasheet

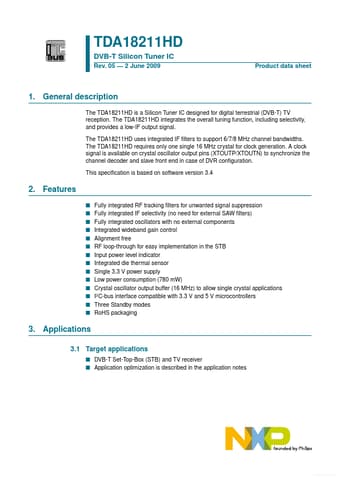

Preview of TDA18211HD PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TDA18211HD
Manufacturer
NXP ↗
File Size
368.19 KB
Datasheet
TDA18211HD_NXP.pdf
Description
DVB-T Silicon Tuner IC
