TJA1054A - Fault-tolerant CAN transceiver

Datasheet Summary

Description

The TJA1054A is the interface between the protocol controller and the physical bus wires in a Controller Area Network (CAN).

It is primarily intended for low-speed applications up to 125 kBd in passenger cars.

Features

  • 2.1 Optimized for in-car low-speed communication I I I I Baud rate up to 125 kBd Up to 32 nodes can be connected Supports unshielded bus wires Very low ElectroMagnetic Emission (EME) due to built-in slope control function and a very good matching of the CANL and CANH bus outputs I Good ElectroMagnetic Immunity (EMI) in normal operating mode and in low power modes I Fully integrated receiver filters I Transmit Data (TxD) dominant time-out function 2.2 Bus failure management I Supports single-wire.

📥 Download Datasheet

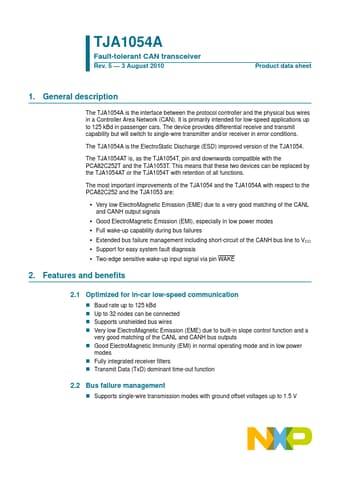

Datasheet preview – TJA1054A

Datasheet Details

Part number TJA1054A
Manufacturer NXP Semiconductors
File Size 197.40 KB
Description Fault-tolerant CAN transceiver
Datasheet download datasheet TJA1054A Datasheet
Additional preview pages of the TJA1054A datasheet.

📁 Similar Datasheet

  • TJA1054 - Fault-tolerant CAN transceiver (NXP)
  • TJA1050 - High speed CAN transceiver (NXP)
  • TJA1050T - High speed CAN transceiver (NXP)
  • TJA1050U - High speed CAN transceiver (NXP)
  • TJA1051 - High-speed CANtransceiver (NXP)
  • TJA1052I - Galvanically isolated high-speed CAN transceiver (NXP)
  • TJA1053 - Fault-tolerant CAN transceiver (NXP)
  • TJA1055 - Enhanced Fauit Tolerant CAN Transceiver (NXP)
  • TJA1057 - High-speed CAN transceiver (NXP)
  • TJA1059 - Dual high-speed CAN transceiver (NXP)
Other Datasheets by NXP Semiconductors

Full PDF Text Transcription

Click to expand full text
TJA1054A Fault-tolerant CAN transceiver Rev. 05 — 29 September 2009 www.DataSheet4U.com Product data sheet 1. General description The TJA1054A is the interface between the protocol controller and the physical bus wires in a Controller Area Network (CAN). It is primarily intended for low-speed applications up to 125 kBd in passenger cars. The device provides differential receive and transmit capability but will switch to single-wire transmitter and/or receiver in error conditions. The TJA1054A is the ElectroStatic Discharge (ESD) improved version of the TJA1054. The TJA1054AT is, as the TJA1054T, pin and downwards compatible with the PCA82C252T and the TJA1053T. This means that these two devices can be replaced by the TJA1054AT or the TJA1054T with retention of all functions.
