74ABT16245B Datasheet - NXP

74ABT16245B - 16-bit bus transceiver

The 74ABT16245B high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and high output drive.

The 74ABT16245B device is a dual octal transceiver featuring non-inverting 3-state bus compatible outputs in both send and receive directions.

The control function

74ABT16245B Features

* 16-bit bidirectional bus interface

* Multiple VCC and GND pins minimize switching noise

* Power-up 3-state

* 3-state buffers

* Output capability: +64 mA / 32 mA

* Live insertion/extraction permitted

* Latch-up performance: JESD 78 Class II

* ESD protection:

* H

74ABT16245B-NXP.pdf

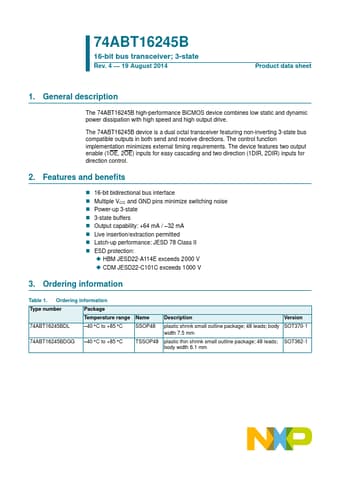

Preview of 74ABT16245B PDF
74ABT16245B Datasheet Preview Page 2 74ABT16245B Datasheet Preview Page 3

Datasheet Details

Part number:

74ABT16245B

Manufacturer:

NXP ↗

File Size:

127.67 KB

Description:

16-bit bus transceiver.
