74ABT16825A Datasheet - NXP

18-bit buffer/line driver

74ABT16825A Features

* Multiple VCC and GND pins minimize switching noise

* Live insertion/extraction permitted

* 3-State output buffers

* Power-up 3-State

* 74ABTH16825A incorporates bus-hold data inputs which eliminate the need for external pull-up resistors to hold unused inpu

74ABT16825A General Description

The74ABT16825A high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and high output drive. The74ABT16825A 18-bit buffers provide high performance bus interface buffering for wide data/address paths or buses carrying parity. They have NOR Output Enables (nO.

74ABT16825A Datasheet (75.59 KB)

74ABT16825A Datasheet Preview — Preview of 74ABT16825A PDF

Datasheet Details

Part number:

74ABT16825A

Manufacturer:

NXP ↗

File Size:

75.59 KB

Description:

18-bit buffer/line driver.

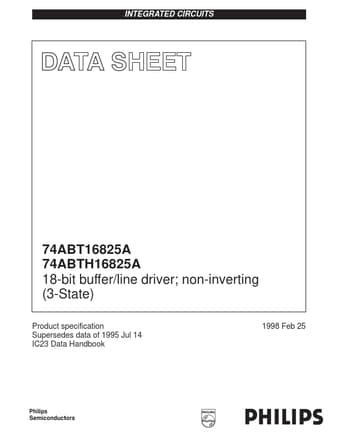

INTEGRATED CIRCUITS 74ABT16825A 74ABTH16825A 18-bit buffer/line driver; non-inverting (3-State) Product specification Supersedes data of 1995 Jul 14 .
