74ABT534A Datasheet, Flip-flop, NXP

74ABT534A Features

  • Flip-flop
  • 8-bit positive edge triggered register
  • 3-State output buffers
  • Output capability: +64mA/
      –32mA
  • Latch-up protection exceeds 500mA p

PDF File Details

Part number:

74ABT534A

Manufacturer:

NXP ↗

File Size:

111.93kb

Download:

📄 Datasheet

Description:

Octal d-type flip-flop. The 74ABT534A high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and high output drive.

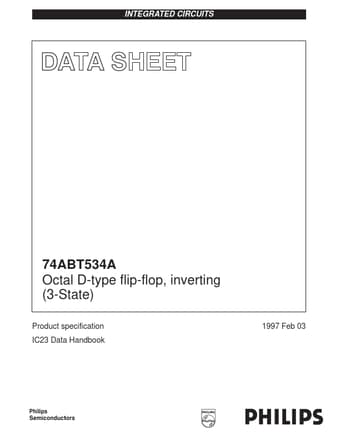

Datasheet Preview: 74ABT534A 📥 Download PDF (111.93kb)
