BCW60 - NPN general purpose transistors

Datasheet Summary

Description

NPN transistor in a SOT23 plastic package.

PNP complements: BCW61 series.

MARKING TYPE NUMBER BCW60B BCW60C BCW60D Note 1.

Features

  • Low current (max. 100 mA).
  • Low voltage (max. 32 V).

📥 Download Datasheet

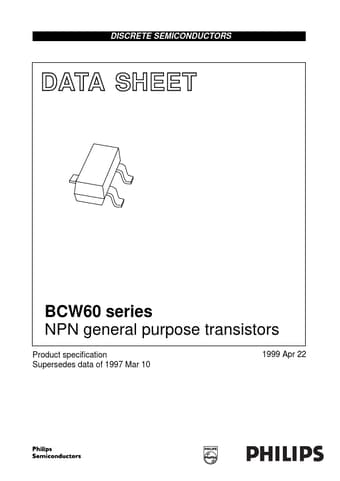

Datasheet preview – BCW60
