BCW61 - PNP general purpose transistors

Datasheet Summary

Description

PNP transistor in a SOT23 plastic package.

NPN complement: BCW60.

MARKING TYPE NUMBER BCW61B BCW61C BCW61D Note 1.

Features

  • Low current (max. 100 mA).
  • Low voltage (max. 32 V).

📥 Download Datasheet

Datasheet preview – BCW61

Datasheet Details

Part number BCW61
Manufacturer NXP
File Size 42.81 KB
Description PNP general purpose transistors
Datasheet download datasheet BCW61 Datasheet
Additional preview pages of the BCW61 datasheet.

📁 Similar Datasheet

  • BCW61 - PNP Silicon AF Transistors (For AF input stages and driver applications High current gain) (Siemens Semiconductor Group)
  • BCW61 - Small Signal Transistors (Vishay)
  • BCW61 - PNP Transistors (Kexin)
  • BCW61 - PNP Silicon Epitaxial Planar Transistors (SEMTECH)
  • BCW61 - PNP General Purpose Amplifier (Galaxy Electrical)
  • BCW61A - PNP Silicon AF Transistors (Infineon)
  • BCW61A - Transistor (Fairchild Semiconductor)
  • BCW61A - (BCW61x) Surface Mount General Purpose Si-Epi-Planar Transistors (Diotec Semiconductor)
  • BCW61A - Small Signal Transistors (Vishay)
  • BCW61A - SILICON PLANAR EPITAXIAL TRANSISTORS (CDIL)
Other Datasheets by NXP
  • BCW61B - PNP Transistor
  • BCW61C - PNP general purpose transistors
  • BCW61D - PNP general purpose transistors
  • BCW60 - NPN general purpose transistors
  • BCW60B - NPN general purpose transistors
  • BCW60C - NPN general purpose transistors
  • BCW60D - NPN general purpose transistors
  • BCW66 - NPN general-purpose transistor

Full PDF Text Transcription

Click to expand full text

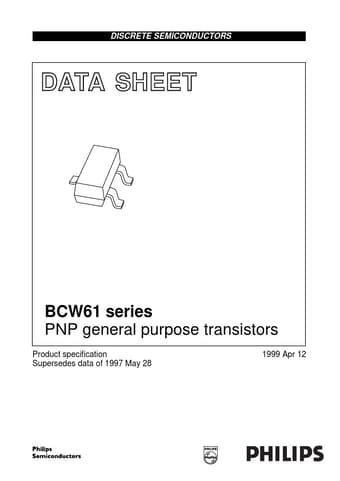

DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage M3D088 BCW61 series PNP general purpose transistors Product specification Supersedes data of 1997 May 28 1999 Apr 12 Philips Semiconductors Product specification PNP general purpose transistors FEATURES • Low current (max. 100 mA) • Low voltage (max. 32 V). APPLICATIONS • General purpose switching and amplification. DESCRIPTION PNP transistor in a SOT23 plastic package. NPN complement: BCW60. MARKING TYPE NUMBER BCW61B BCW61C BCW61D Note 1. ∗ = p : Made in Hong Kong. ∗ = t : Made in Malaysia. MARKING CODE(1) BB∗ BC∗ BD∗ Top view handbook, halfpage BCW61 series PINNING PIN 1 2 3 base emitter collector DESCRIPTION 3 3 1 2 1 2 MAM256 Fig.1 Simplified outline (SOT23) and symbol.
