BCW60ALT1 - General Purpose Transistors

Datasheet Summary

Features

limits indicated by the applicable curve. The data of Figure 20 is based upon T J(pk) = 150 °C; TC or TA is variable depending upon conditions. Pulse curves are valid for duty cycles to 10% provided TJ(pk) ≤ 150°C. TJ(pk) may be calculated from the data in Figure 19. At high case or ambient temperatures, thermal limitations will reduce the po.

Datasheet Details

Part number	BCW60ALT1
Manufacturer	Motorola Inc
File Size	425.18 KB
Description	General Purpose Transistors
Datasheet	BCW60ALT1 Datasheet
Additional preview pages of the BCW60ALT1 datasheet.

📁 Similar Datasheet

BCW60A - NPN EPITAXIAL SILICON TRANSISTOR (Samsung semiconductor)

BCW60A - NPN Silicon AF Transistors (For AF input stages and driver applications High current gain) (Siemens Semiconductor Group)

BCW60A - NPN Silicon AF Transistors (Infineon Technologies AG)

BCW60A - GENERAL PURPOSE TRANSISTOR (Motorola)

BCW60A - Small Signal Transistors (Vishay)

BCW60A - Transistor (Fairchild Semiconductor)

BCW60A - NPN General Purpose Transistors (KEXIN)

BCW60A - SILICON PLANAR EPITAXIAL TRANSISTORS (CDIL)

BCW60A - Surface Mount General Purpose Si-Epi-Planar Transistors (Diotec)

BCW60 - NPN general purpose transistors (NXP)

Full PDF Text Transcription

Click to expand full text

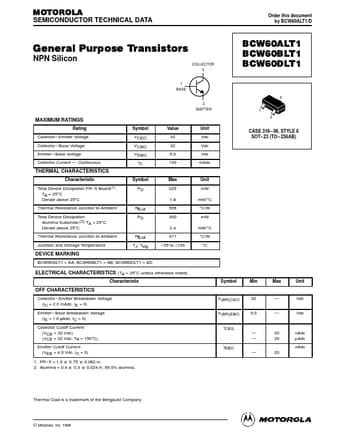

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by BCW60ALT1/D General Purpose Transistors NPN Silicon COLLECTOR 3 1 BASE BCW60ALT1 BCW60BLT1 BCW60DLT1 3 2 EMITTER 1 2 MAXIMUM RATINGS Rating Collector – Emitter Voltage Collector – Base Voltage Emitter – Base Voltage Collector Current — Continuous Symbol VCEO VCBO VEBO IC Value 32 32 5.0 100 Unit Vdc Vdc Vdc mAdc CASE 318 – 08, STYLE 6 SOT– 23 (TO – 236AB) THERMAL CHARACTERISTICS Characteristic Total Device Dissipation FR– 5 Board(1) TA = 25°C Derate above 25°C Thermal Resistance Junction to Ambient Total Device Dissipation Alumina Substrate,(2) TA = 25°C Derate above 25°C Thermal Resistance Junction to Ambient Junction and Storage Temperature Symbol PD Max 225 1.8 RqJA PD 556 300 2.
