BCX71H - PNP Transistor

BCX71H Description

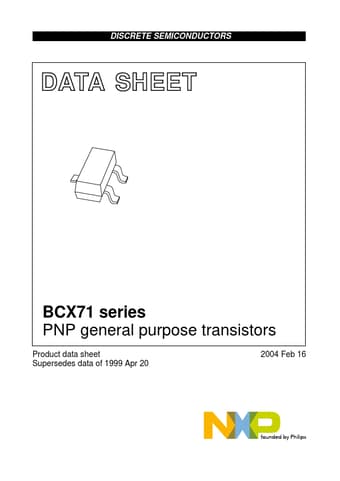

DISCRETE SEMICONDUCTORS DATA SHEET BCX71 series PNP general purpose transistors Product data sheet Supersedes data of 1999 Apr 20 2004 Feb 16 NXP .
DESCRIPTION PNP transistor in a plastic SOT23 package.

BCX71H Features

* Low current (max. 100 mA)
* Low voltage (max. 45 V)

BCX71H Applications

* Low level, low noise, low frequency applications in hybrid circuits

📥 Download Datasheet

Preview of BCX71H PDF
datasheet Preview Page 2 datasheet Preview Page 3
