BCX71H-Q 45V 100mA PNP general purpose transistor

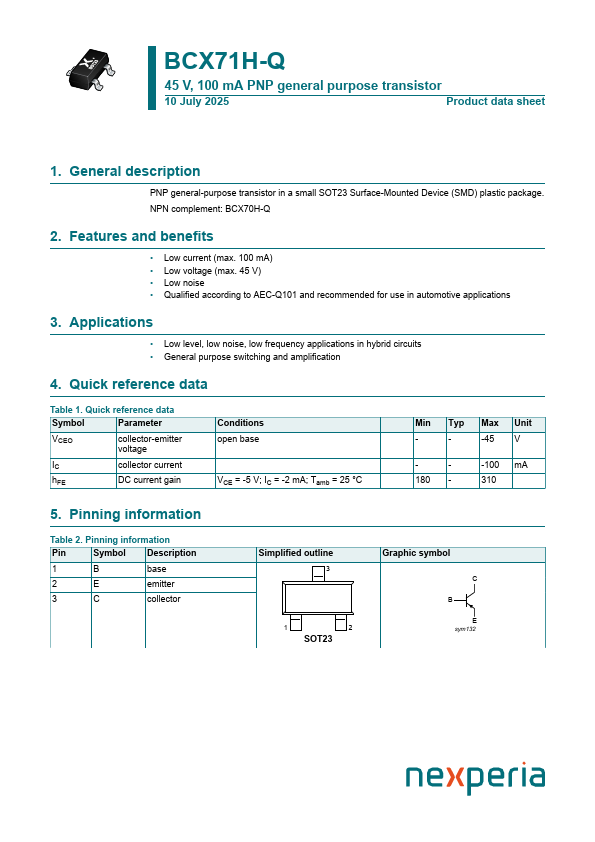

📥 Download Datasheet  Datasheet Preview Page 1

Description

BCX71H-Q 45 V, 100 mA PNP general purpose transistor 10 July 2025 Product data sheet 1.General .
PNP general-purpose transistor in a small SOT23 Surface-Mounted Device (SMD) plastic package.

📥 Download Datasheet

Preview of BCX71H-Q PDF

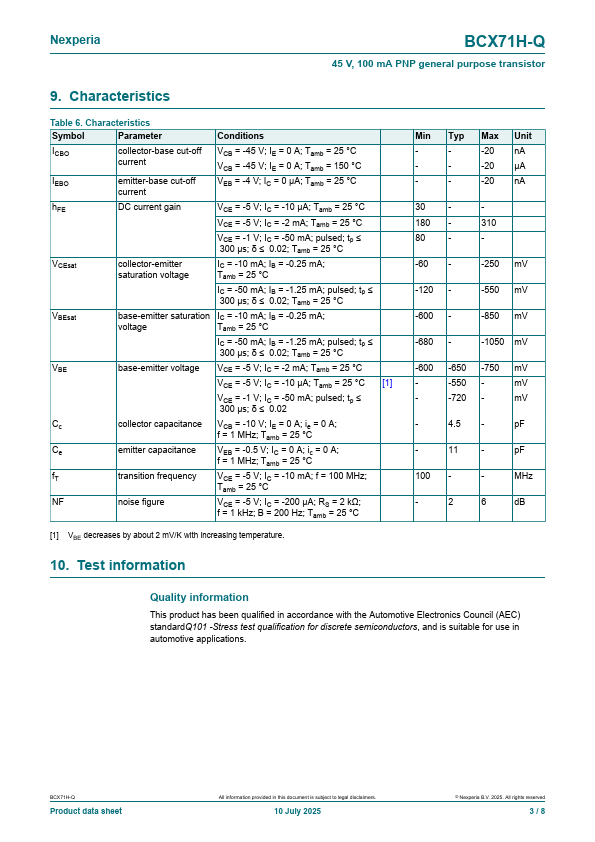

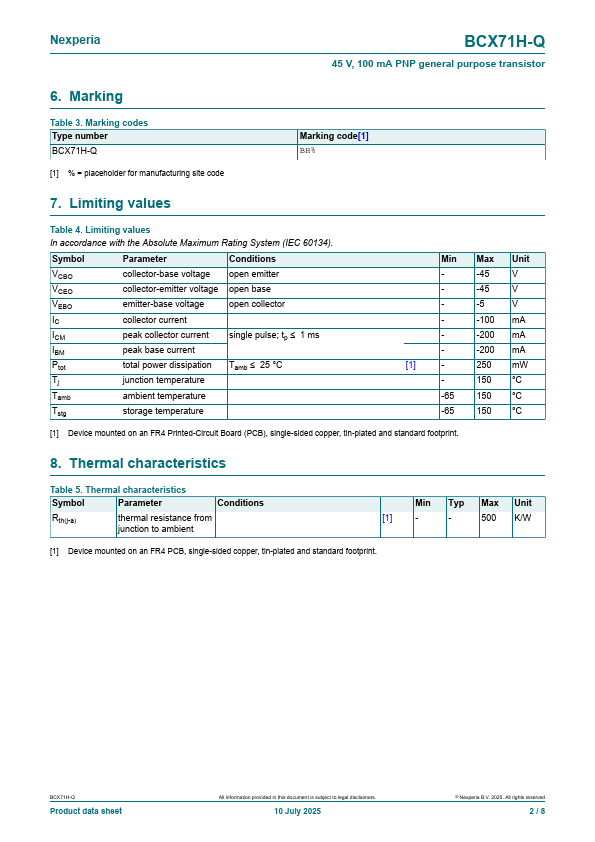

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
BCX71H-Q
Manufacturer
nexperia ↗
File Size
179.58 KB
Datasheet
BCX71H-Q-nexperia.pdf
Description
45V 100mA PNP general purpose transistor

Features

* Low current (max. 100 mA)
* Low voltage (max. 45 V)
* Low noise

Applications

* 3. Applications
* Low level, low noise, low frequency applications in hybrid circuits
* General purpose switching and amplification 4. Quick reference data Table 1. Quick reference data Symbol Parameter VCEO collector-emitter voltage IC collector current hFE DC current gai
