BGY1816S Datasheet - NXP

UHF amplifier

BGY1816S General Description

The BGY1816S is a three-stage UHF amplifier module in a SOT501A package with a plastic cap. It consists of three NPN silicon planar transistor dies mounted together with matching and bias circuit components on a metallized ceramic AlN substrate. PINNING - SOT501A PIN 1 2 3 4 Flange RF input VS1 VS2 .

BGY1816S Datasheet (68.05 KB)

BGY1816S Datasheet Preview — Preview of BGY1816S PDF

Datasheet Details

Part number:

BGY1816S

Manufacturer:

NXP ↗

File Size:

68.05 KB

Description:

Uhf amplifier.

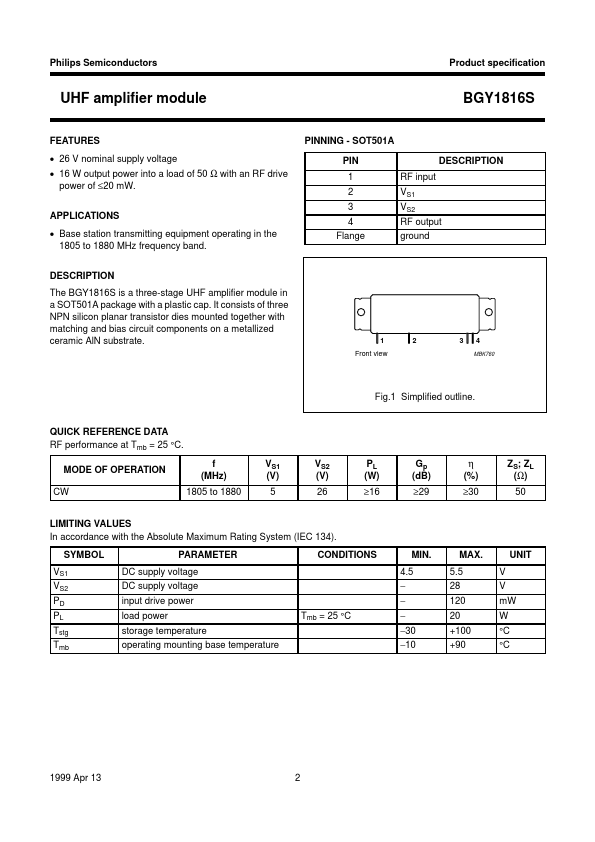

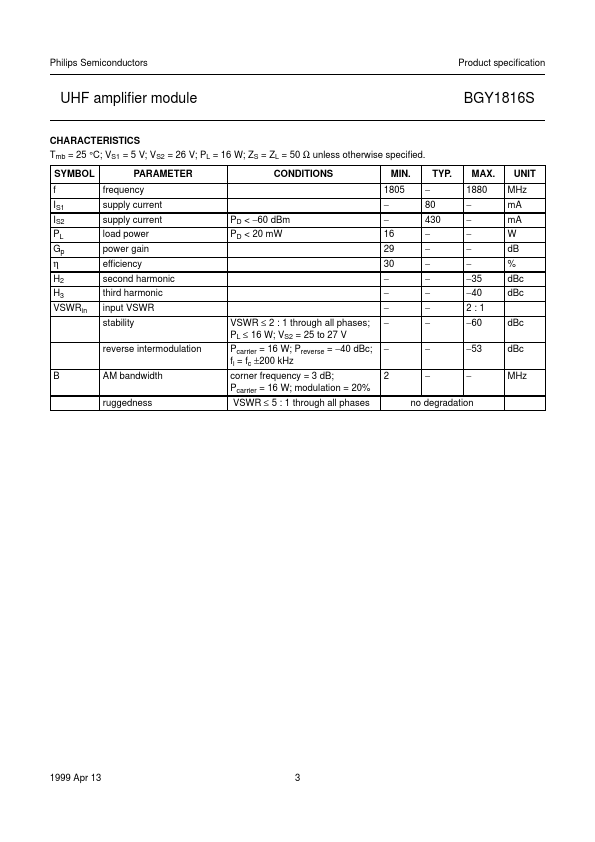

DISCRETE SEMICONDUCTORS DATA SHEET handbook, halfpage M3D388 BGY1816S UHF amplifier module Product speciﬁcation Supersedes data of 1999 Jan 07 1999.
