BGY204 Datasheet - NXP

UHF amplifier

BGY204 General Description

The BGY204 is a four-stage UHF amplifier module in a SOT321B package. The module consists of four NPN silicon planar transistor dies mounted together with matching and bias circuit components on a metallized ceramic substrate. 1 Top view 2 3 BGY204 PINNING - SOT321B PIN 1 2 3 4 Flange RF input VC V.

BGY204 Datasheet (61.44 KB)

BGY204 Datasheet Preview — Preview of BGY204 PDF

Datasheet Details

Part number:

BGY204

Manufacturer:

NXP ↗

File Size:

61.44 KB

Description:

Uhf amplifier.

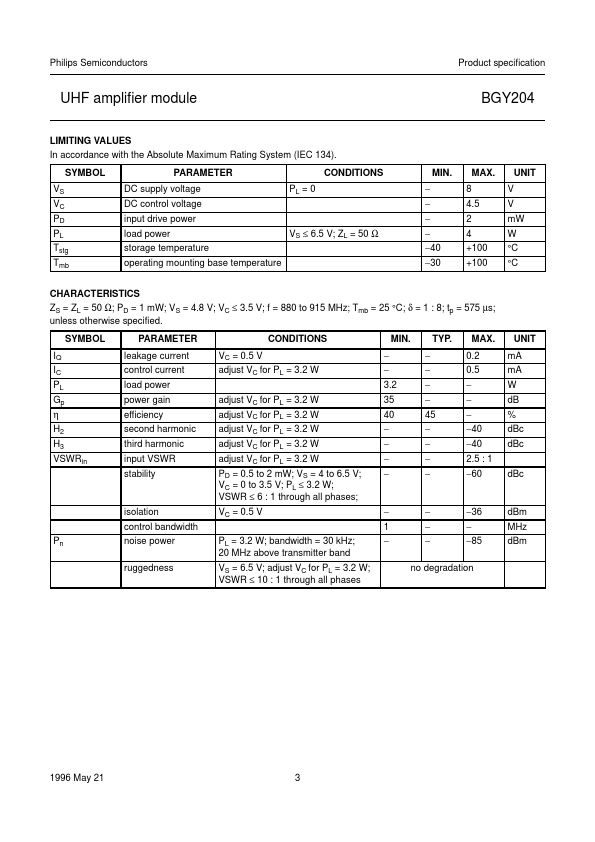

DISCRETE SEMICONDUCTORS DATA SHEET BGY204 UHF amplifier module Product speciﬁcation File under Discrete Semiconductors, SC09 1996 May 21 Philips Se.
