Description
book, halfpage
BGY212A
PINNING - SOT482C PIN 1 2 3 4 5 VC VS RF output ground DESCRIPTION RF input
The BGY212A is a three-stage UHF amplifier module in a SOT482C leadless package with a plastic cover.The module consists of one NPN silicon planar transistor die and one bipolar monolithic integrated circuit mounted together with matching and bias circuit components on a metallized ceramic substrate.5
4
3
2
1
MBK201
Bottom view
Fig.1 Simplified outline

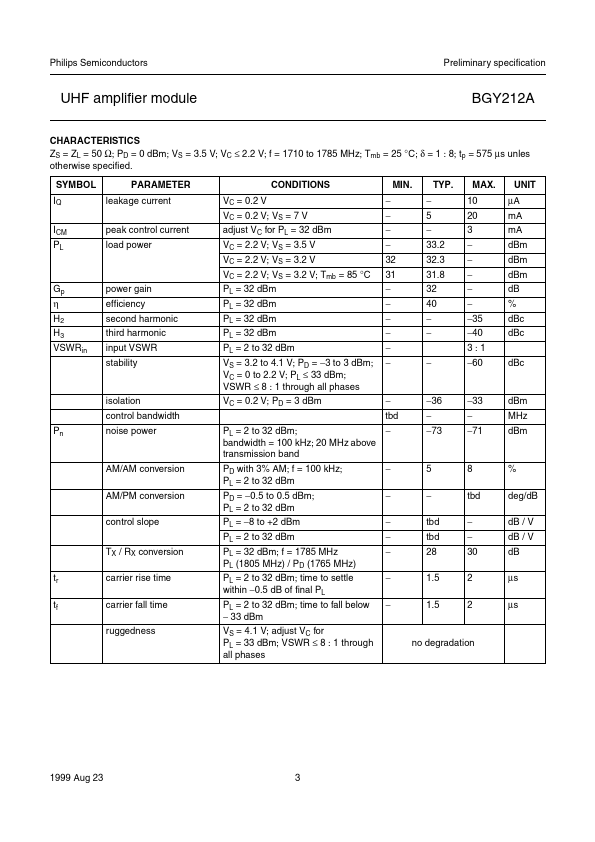

QUICK REFERENCE DATA RF performanc
Features
- 3.5 V nominal supply voltage.
- 2 W output power.
- Easy output power control by DC voltage.
