BGY205, UHF amplifier

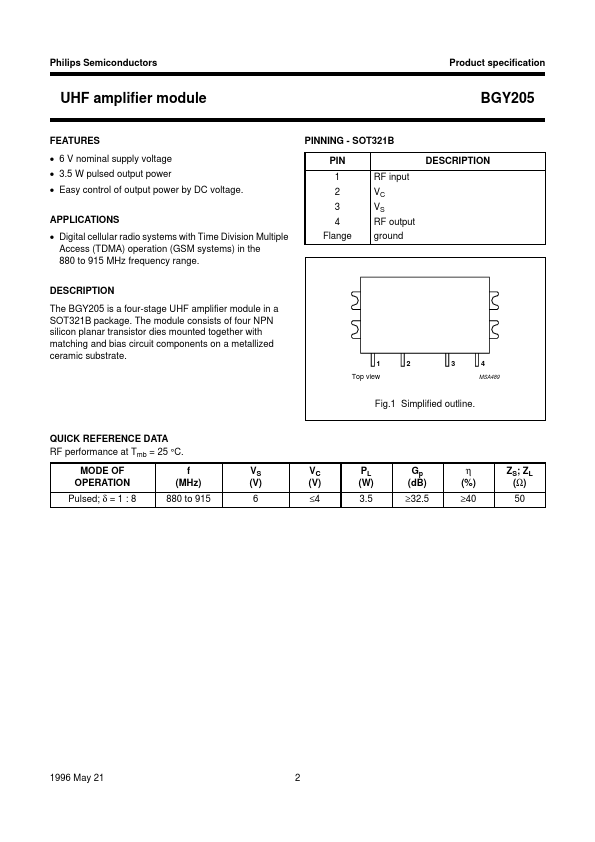

The BGY205 is a four-stage UHF amplifier module in a SOT321B package.

The module consists of four NPN silicon planar transistor dies mounted together with matching and bias circuit components on a metallized ceramic substrate.

PINNING - SOT321B PIN 1 2 3 4 Flange RF input VC VS RF output ground BGY
