BLW85 - HF/VHF power transistor

Datasheet Summary

Description

N-P-N silicon planar epitaxial transistor intended for use in class-A, B and C operated mobile h.f.

and v.h.f.

transmitters with a nominal supply voltage of 12,5 V.

Features

F ceramic ca.

NXP

📥 Download Datasheet

BLW85 HF/VHF power transistor by NXP - Datasheet Preview — Datasheet preview – BLW85

Datasheet Details

Part number	BLW85
Manufacturer	NXP
File Size	109.00 KB
Description	HF/VHF power transistor
Datasheet	BLW85 Datasheet
Additional preview pages of the BLW85 datasheet.

📁 Similar Datasheet

BLW81 - UHF power transistor (ELEFLOW TECHNOLOGIES)
BLW81 - NPN SILICON RF POWER TRANSISTOR (ASI)
BLW86 - NPN SILICON RF POWER TRANSISTOR (ASI)
BLW31 - NPN SILICON RF POWER TRANSISTOR (Advanced Semiconductor)
BLW34 - NPN SILICON RF POWER TRANSISTOR (ASI)
BLW75 - NPN SILICON RF POWER TRANSISTOR (Advanced Semiconductor)

Other Datasheets by NXP

BLW80 - UHF power transistor
BLW81 - UHF power transistor
BLW83 - HF/VHF power transistor
BLW86 - HF/VHF power transistor
BLW87 - VHF power transistor
BLW898 - UHF linear power transistor
BLW29 - VHF power transistor
BLW30 - VHF power transistor

Full PDF Text Transcription

Click to expand full text

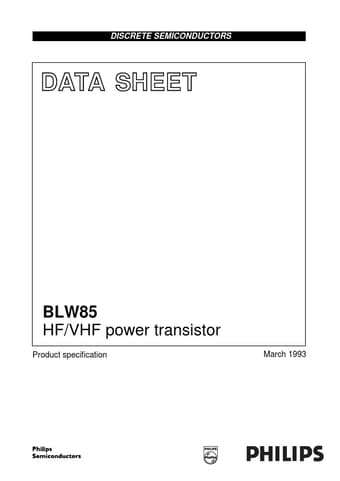

DISCRETE SEMICONDUCTORS DATA SHEET BLW85 HF/VHF power transistor Product speciﬁcation March 1993 Philips Semiconductors Product speciﬁcation HF/VHF power transistor DESCRIPTION N-P-N silicon planar epitaxial transistor intended for use in class-A, B and C operated mobile h.f. and v.h.f. transmitters with a nominal supply voltage of 12,5 V. The transistor is resistance stabilized and is guaranteed to withstand severe load mismatch conditions with a supply over-voltage to 16,5 V. Matched hFE groups are available on request. It has a 3/8" flange envelope with a ceramic cap. All leads are isolated from the flange. BLW85 QUICK REFERENCE DATA R.F. performance up to Th = 25 °C MODE OF OPERATION c.w. (class-B) s.s.b. (class-AB) VCE V 12,5 12,5 f MHz 175 1,6−28 PL W 45 3−30 (P.E.P.
