BLW898 Datasheet - NXP

BLW898 - UHF linear power transistor

NPN silicon planar transistor in a SOT171A 6-lead rectangular flange package, with a ceramic cap.

The transistor delivers a Po sync = 3 W in class-A operation at 860 MHz and a supply voltage of 25 V.

PINNING SOT171A PIN 1 2 3 4 5 6 emitter emitter base collector emitter emitter BLW898 DESCRIPTION

BLW898 Features

* Internal input matching for wideband operation and high power gain

* Polysilicon emitter ballasting resistors for an optimum temperature profile

* Gold metallization ensures excellent reliability. APPLICATION

* Common emitter class-A operation in linear transposers/

BLW898_PhilipsSemiconductors.pdf

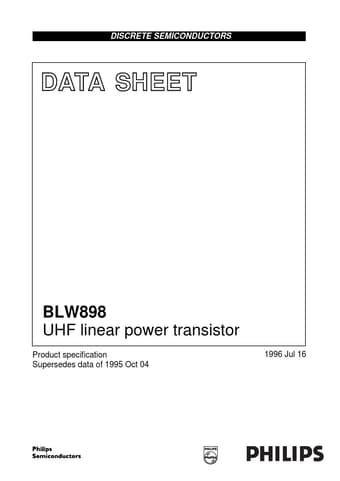

Preview of BLW898 PDF
BLW898 Datasheet Preview Page 2 BLW898 Datasheet Preview Page 3

Datasheet Details

Part number:

BLW898

Manufacturer:

NXP ↗

File Size:

102.99 KB

Description:

Uhf linear power transistor.
