BT151S - Thyristors

Description

Glass passivated thyristors in a plastic envelope, suitable for surface mounting, intended for use in applications requiring high bidirectional blocking voltage capability and high thermal cycling performance.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BT151S SCRs HAOPIN
BT151S-500L SCR WeEn
BT151S-500R SCR WeEn
BT151S-500R Thyristors INCHANGE
BT151S-500R SCRs HAOPIN

Other Datasheets by NXP Semiconductors

Part Number Description
BT151S-500R Thyristors
BT151S-650R Thyristors
BT151S-650S SCR
BT151S-800R Thyristors
BT151 Thyristors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

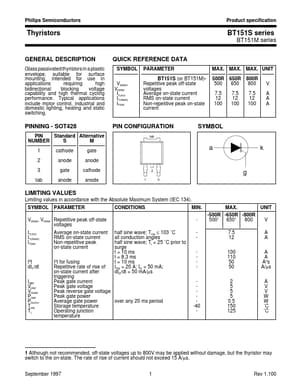

Philips Semiconductors Product specification Thyristors BT151S series BT151M series GENERAL DESCRIPTION Glass passivated thyristors in a plastic envelope, suitable for surface mounting, intended for use in applications requiring high bidirectional blocking voltage capability and high thermal cycling performance. Typical applications include motor control, industrial and domestic lighting, heating and static switching. QUICK REFERENCE DATA SYMBOL VDRM, VRRM IT(AV) IT(RMS) ITSM PARAMETER BT151S (or BT151M)Repetitive peak off-state voltages Average on-state current RMS on-state current Non-repetitive peak on-state current MAX. MAX. MAX. UNIT 500R 500 7.5 12 100 650R 650 7.5 12 100 800R 800 7.
