BTA204-800C, 3Q Hi-Com Triac

TO-220AB BTA204-800C 3Q Hi-Com Triac 11 August 2014 Product data sheet 1.General .
Planar passivated high commutation three quadrant triac in a SOT78 (TO-220AB) plastic package intended for use in circuits where high static and dynam.

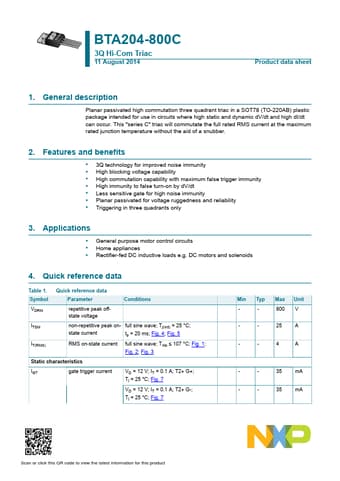

datasheet Preview Page 1 from Datasheet4u.com

BTA204-800C_PhilipsSemiconductors.pdf

BTA204-800C Datasheet Preview — Preview of BTA204-800C PDF

Datasheet Details

Part number:

BTA204-800C

Manufacturer:

NXP ↗

File Size:

346.46 KB

Description:

3Q Hi-Com Triac

Features

* 3Q technology for improved noise immunity
* High blocking voltage capability
* High commutation capability with maximum false trigger immunity
* High immunity to false turn-on by dV/dt
* Less sensitive gate for high noise immunity
* Planar passivated

Applications

* General purpose motor control circuits
* Home appliances
* Rectifier-fed DC inductive loads e. g. DC motors and solenoids 4. Quick reference data Table 1. Quick reference data Symbol Pa
