BUK7905-40ATE, BUK7105-40ATE Datasheet - NXP

BUK7905-40ATE TrenchPLUS standard level FET

N-channel enhancement mode field-effect power transistor in a plastic package using TrenchMOS™ technology, featuring both very low on-state resistance and TrenchPLUS diodes for temperature sensing and ESD protection. Product availability: BUK7105-40ATE in SOT426 (D2-PAK) BUK7905-40ATE in SOT263B (TO-.

BUK7905-40ATE Features

* s Integrated temperature sensor s Electrostatic discharge protection s Q101 compliant s Standard level compatible. 1.3 Applications s Variable Valve Timing for engines s Electrical Power Assisted Steering. 1.4 Quick reference data s VDS ≤ 40 V s RDSon = 4.5 mΩ (typ) s VF = 658 mV (typ) s SF =

BUK7105-40ATE_PhilipsSemiconductors.pdf

This datasheet PDF includes multiple part numbers: BUK7905-40ATE, BUK7105-40ATE. Please refer to the document for exact specifications by model.

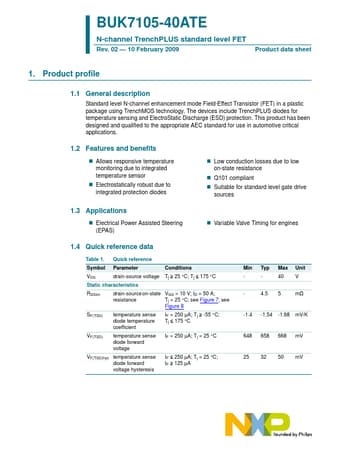

BUK7905-40ATE Datasheet Preview Page 2 BUK7905-40ATE Datasheet Preview Page 3

Datasheet Details

Part number:

BUK7905-40ATE, BUK7105-40ATE

Manufacturer:

NXP ↗

File Size:

204.71 KB

Description:

Trenchplus standard level fet.

Note:

This datasheet PDF includes multiple part numbers: BUK7905-40ATE, BUK7105-40ATE.
Please refer to the document for exact specifications by model.
