BUK7908-40AIE, BUK7108-40AIE, TrenchPLUS standard level FET

www.DataSheet4U.com BUK71/7908-40AIE TrenchPLUS standard level FET Rev.02 * 24 October 2003 Product data 1.Product proﬁle 1.1 .
N-channel enhancement mode ﬁeld-effect power transistor in a plastic package using TrenchMOS™ technology, featuring very low on-state resistance, Tren.

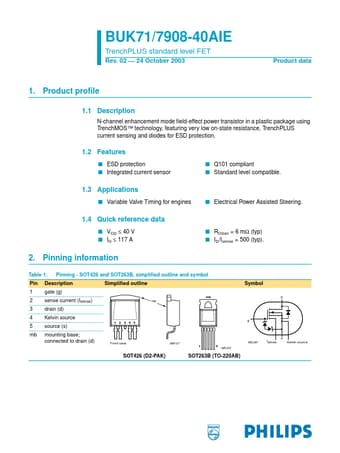

datasheet Preview Page 1 from Datasheet4u.com

BUK7108-40AIE_PhilipsSemiconductors.pdf

BUK7908-40AIE Datasheet Preview — This datasheet PDF includes multiple part numbers: BUK7908-40AIE, BUK7108-40AIE. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BUK7908-40AIE, BUK7108-40AIE

Manufacturer:

NXP ↗

File Size:

338.38 KB

Description:

TrenchPLUS standard level FET

Note:

This datasheet PDF includes multiple part numbers: BUK7908-40AIE, BUK7108-40AIE.
Please refer to the document for exact specifications by model.

Applications

* s Variable Valve Timing for engines s Electrical Power Assisted Steering. 1.4 Quick reference data s VDS ≤ 40 V s ID ≤ 117 A s RDSon = 6 mΩ (typ) s ID/Isense = 500 (typ). 2. Pinning information Table 1: Pin 1 2 3 4 5 mb Pinning - SOT426 and SOT263B, simpliﬁed outline and symbol Simpliﬁed outline m
