BUK7907-55AIE, BUK7107-55AIE Datasheet - NXP

BUK7907-55AIE TrenchPLUS standard level FET

N-channel enhancement mode field-effect power transistor in a plastic package using TrenchMOS™ technology, featuring very low on-state resistance, TrenchPLUS current sensing and diodes for ESD protection. Product availability: BUK7107-55AIE in SOT426 (D2-PAK) BUK7907-55AIE in SOT263B (TO-220AB). 1.2.

BUK7907-55AIE Features

* s Integrated current sensor s ESD protection s Q101 compliant s Standard level compatible. 1.3 Applications s Variable Valve Timing for engines s Electrical Power Assisted Steering. 1.4 Quick reference data s VDS ≤ 55 V s ID ≤ 140 A s RDSon = 5.8 mΩ (typ) s ID/Isense = 500 (typ). 2. Pinning infor

BUK7107-55AIE_PhilipsSemiconductors.pdf

This datasheet PDF includes multiple part numbers: BUK7907-55AIE, BUK7107-55AIE. Please refer to the document for exact specifications by model.

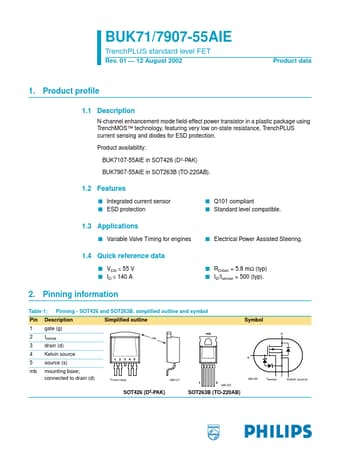

BUK7907-55AIE Datasheet Preview Page 2 BUK7907-55AIE Datasheet Preview Page 3

Datasheet Details

Part number:

BUK7907-55AIE, BUK7107-55AIE

Manufacturer:

NXP ↗

File Size:

161.07 KB

Description:

Trenchplus standard level fet.

Note:

This datasheet PDF includes multiple part numbers: BUK7907-55AIE, BUK7107-55AIE.
Please refer to the document for exact specifications by model.
