BY329-1000, Rectifier diodes fast/ soft-recovery

Philips Semiconductors Product specification Rectifier diodes fast, soft-recovery .
Glass-passivated double diffused rectifier diodes featuring low forward voltage drop, fast reverse recovery and soft recovery characteristic.

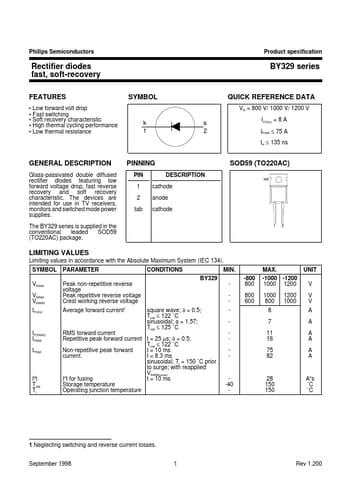

datasheet Preview Page 1 from Datasheet4u.com

BY329-1000_PhilipsSemiconductors.pdf

BY329-1000 Datasheet Preview — Preview of BY329-1000 PDF

Datasheet Details

Part number:

BY329-1000

Manufacturer:

NXP ↗

File Size:

42.54 KB

Description:

Rectifier diodes fast/ soft-recovery

Features

* Low forward volt drop
* Fast switching
* Soft recovery characteristic
* High thermal cycling performance
* Low thermal resistance BY329 series SYMBOL QUICK REFERENCE DATA VR = 800 V/ 1000 V/ 1200 V IF(AV) = 8 A IFSM ≤ 75 A trr ≤ 135 ns k 1 a 2 GENERAL

Applications

* These products are not designed for use in life support appliances, devices or systems where malfunction of these products can be reasonably expected to result in personal injury. Philips customers using or selling these products for use in such applications do so at their own risk and agree to full
