BY329-1200 Datasheet - NXP

BY329-1200_PhilipsSemiconductors.pdf

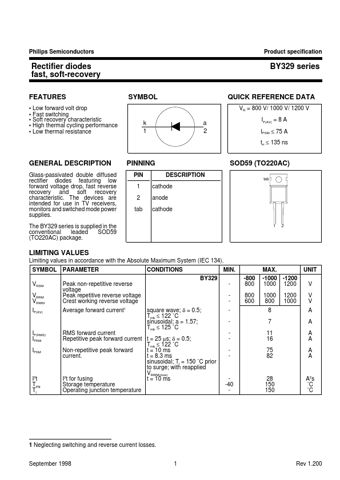

Preview of BY329-1200 PDF
BY329-1200 Datasheet Preview Page 2 BY329-1200 Datasheet Preview Page 3

Datasheet Details

Part number:

BY329-1200

Manufacturer:

NXP ↗

File Size:

42.54 KB

Description:

Rectifier diodes fast/ soft-recovery.

BY329-1200, Rectifier diodes fast/ soft-recovery

Glass-passivated double diffused rectifier diodes featuring low forward voltage drop, fast reverse recovery and soft recovery characteristic.

The devices are intended for use in TV receivers, monitors and switched mode power supplies.

The BY329 series is supplied in the conventional leaded SOD59 (TO

BY329-1200 Features

* Low forward volt drop

* Fast switching

* Soft recovery characteristic

* High thermal cycling performance

* Low thermal resistance BY329 series SYMBOL QUICK REFERENCE DATA VR = 800 V/ 1000 V/ 1200 V IF(AV) = 8 A IFSM ≤ 75 A trr ≤ 135 ns k 1 a 2 GENERAL
