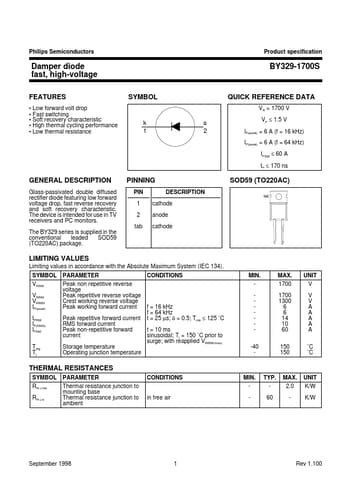

BY329-1700S Datasheet (NXP) - Damper diode fast/ high-voltage

BY329-1700S, Damper diode fast/ high-voltage

Glass-passivated double diffused rectifier diode featuring low forward voltage drop, fast reverse recovery and soft recovery characteristic.

The device is intended for use in TV receivers and PC monitors.

The BY329 series is supplied in the conventional leaded SOD59 (TO220AC) package.

PINNING PIN 1

BY329-1700S Features

* Low forward volt drop

* Fast switching

* Soft recovery characteristic

* High thermal cycling performance

* Low thermal resistance BY329-1700S SYMBOL QUICK REFERENCE DATA VR = 1700 V VF ≤ 1.5 V IF(peak) = 6 A (f = 16 kHz) IF(peak) = 6 A (f = 64 kHz) IFSM ≤
