BY329, Rectifier diodes fast/ soft-recovery

Philips Semiconductors Product specification Rectifier diodes fast, soft-recovery .
Glass-passivated double diffused rectifier diodes featuring low forward voltage drop, fast reverse recovery and soft recovery characteristic.

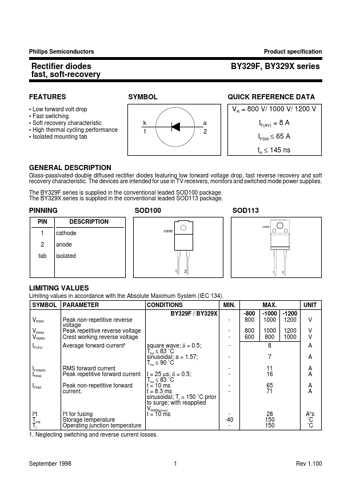

datasheet Preview Page 1 from Datasheet4u.com

BY329_PhilipsSemiconductors.pdf

BY329 Datasheet Preview — Preview of BY329 PDF

Datasheet Details

Part number:

BY329

Manufacturer:

NXP ↗

File Size:

57.00 KB

Description:

Rectifier diodes fast/ soft-recovery

Features

* Low forward volt drop
* Fast switching
* Soft recovery characteristic
* High thermal cycling performance
* Isolated mounting tab BY329F, BY329X series SYMBOL QUICK REFERENCE DATA VR = 800 V/ 1000 V/ 1200 V k 1 a 2 IF(AV) = 8 A IFSM ≤ 65 A trr ≤ 145 ns

Applications

* These products are not designed for use in life support appliances, devices or systems where malfunction of these products can be reasonably expected to result in personal injury. Philips customers using or selling these products for use in such applications do so at their own risk and agree to full
