BY329X-1500 - Damper diode fast/ high-voltage

Datasheet Summary

Description

Glass-passivated double diffused rectifier diode featuring low forward voltage drop, fast reverse recovery and soft recovery characteristic.

The device is intended for use in TV receivers and PC monitors.

The BY329X series is supplied in the conventional leaded SOD113 package.

Features

  • Low forward volt drop.
  • Fast switching.
  • Soft recovery characteristic.
  • High thermal cycling performance.
  • Isolated mounting tab BY329X-1500, BY329X-1500S SYMBOL QUICK.

📥 Download Datasheet

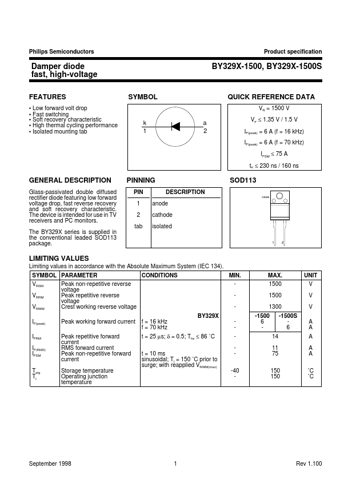

Datasheet preview – BY329X-1500

Datasheet Details

Part number BY329X-1500
Manufacturer NXP
File Size 38.96 KB
Description Damper diode fast/ high-voltage
Datasheet download datasheet BY329X-1500 Datasheet
Additional preview pages of the BY329X-1500 datasheet.

📁 Similar Datasheet

  • BY329X-1500S - Ultrafast Rectifier (INCHANGE)
  • BY396 - SOFT RECOVERY/ FAST SWITCHING PLASTIC RECTIFIER (Pan Jit International Inc.)
  • BY396 - FAST SILICON RECTIFIERS (Semtech Corporation)
  • BY396 - TECHNICAL SPECIFICATIONS OF FAST RECOVERY RECTIFIER (Dc Components)
  • BY396 - FAST RECOVERY RECTIFIER DIODES (EIC discrete Semiconductors)
  • BY396 - FAST RECOVERY SILICON RECTIFIER (GOOD-ARK Electronics)
  • BY396 - Fast Silicon Rectifiers (Diotec Semiconductor)
  • BY396P - SOFT RECOVER FAST - SWITCHING PLASTIC RECTIFIER (General Semiconductor)
  • BY397 - SOFT RECOVERY/ FAST SWITCHING PLASTIC RECTIFIER (Pan Jit International Inc.)
  • BY397 - FAST RECOVERY SILICON RECTIFIER (GOOD-ARK Electronics)
Other Datasheets by NXP
  • BY329X-1500S - Damper diode fast/ high-voltage
  • BY329X-1000 - Rectifier diodes fast/ soft-recovery
  • BY329X-1200 - Rectifier diodes fast/ soft-recovery
  • BY329X-1700S - Damper diode fast/ high-voltage
  • BY329X-800 - Rectifier diodes fast/ soft-recovery
  • BY329X - Rectifier diodes fast/ soft-recovery
  • BY329 - Rectifier diodes fast/ soft-recovery
  • BY329-1000 - Rectifier diodes fast/ soft-recovery

Full PDF Text Transcription

Click to expand full text
Philips Semiconductors Product specification Damper diode fast, high-voltage FEATURES • Low forward volt drop • Fast switching • Soft recovery characteristic • High thermal cycling performance • Isolated mounting tab BY329X-1500, BY329X-1500S SYMBOL QUICK REFERENCE DATA VR = 1500 V VF ≤ 1.35 V / 1.5 V IF(peak) = 6 A (f = 16 kHz) IF(peak) = 6 A (f = 70 kHz) IFSM ≤ 75 A trr ≤ 230 ns / 160 ns k 1 a 2 GENERAL DESCRIPTION Glass-passivated double diffused rectifier diode featuring low forward voltage drop, fast reverse recovery and soft recovery characteristic. The device is intended for use in TV receivers and PC monitors. The BY329X series is supplied in the conventional leaded SOD113 package.
