BY329X-800 - Rectifier diodes fast/ soft-recovery

Datasheet Summary

Description

Glass-passivated double diffused rectifier diodes featuring low forward voltage drop, fast reverse recovery and soft recovery characteristic.

The devices are intended for use in TV receivers, monitors and switched mode power supplies.

Features

  • Low forward volt drop.
  • Fast switching.
  • Soft recovery characteristic.
  • High thermal cycling performance.
  • Isolated mounting tab BY329F, BY329X series SYMBOL QUICK.

📥 Download Datasheet

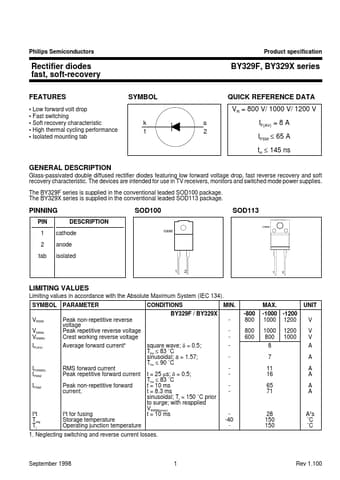

Datasheet preview – BY329X-800

Datasheet Details

Part number BY329X-800
Manufacturer NXP
File Size 57.00 KB
Description Rectifier diodes fast/ soft-recovery
Datasheet download datasheet BY329X-800 Datasheet
Additional preview pages of the BY329X-800 datasheet.

📁 Similar Datasheet

  • BY329X-1500S - Ultrafast Rectifier (INCHANGE)
  • BY396 - SOFT RECOVERY/ FAST SWITCHING PLASTIC RECTIFIER (Pan Jit International Inc.)
  • BY396 - FAST SILICON RECTIFIERS (Semtech Corporation)
  • BY396 - TECHNICAL SPECIFICATIONS OF FAST RECOVERY RECTIFIER (Dc Components)
  • BY396 - FAST RECOVERY RECTIFIER DIODES (EIC discrete Semiconductors)
  • BY396 - FAST RECOVERY SILICON RECTIFIER (GOOD-ARK Electronics)
  • BY396 - Fast Silicon Rectifiers (Diotec Semiconductor)
  • BY396P - SOFT RECOVER FAST - SWITCHING PLASTIC RECTIFIER (General Semiconductor)
  • BY397 - SOFT RECOVERY/ FAST SWITCHING PLASTIC RECTIFIER (Pan Jit International Inc.)
  • BY397 - FAST RECOVERY SILICON RECTIFIER (GOOD-ARK Electronics)
Other Datasheets by NXP

Full PDF Text Transcription

Click to expand full text
Philips Semiconductors Product specification Rectifier diodes fast, soft-recovery FEATURES • Low forward volt drop • Fast switching • Soft recovery characteristic • High thermal cycling performance • Isolated mounting tab BY329F, BY329X series SYMBOL QUICK REFERENCE DATA VR = 800 V/ 1000 V/ 1200 V k 1 a 2 IF(AV) = 8 A IFSM ≤ 65 A trr ≤ 145 ns GENERAL DESCRIPTION Glass-passivated double diffused rectifier diodes featuring low forward voltage drop, fast reverse recovery and soft recovery characteristic. The devices are intended for use in TV receivers, monitors and switched mode power supplies. The BY329F series is supplied in the conventional leaded SOD100 package. The BY329X series is supplied in the conventional leaded SOD113 package.
