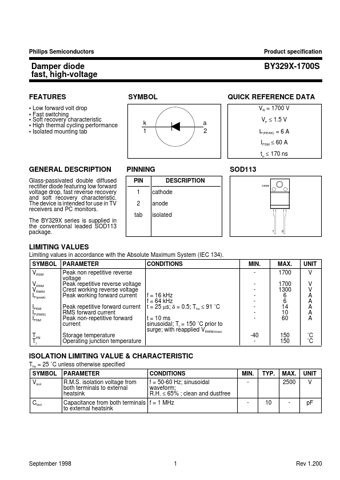

BY329X-1700S Datasheet - NXP

Damper diode fast/ high-voltage

BY329X-1700S Features

* Low forward volt drop

* Fast switching

* Soft recovery characteristic

* High thermal cycling performance

* Isolated mounting tab BY329X-1700S SYMBOL QUICK REFERENCE DATA VR = 1700 V VF ≤ 1.5 V IF(PEAK) = 6 A IFSM ≤ 60 A trr ≤ 170 ns k 1 a 2 GENERAL DES

BY329X-1700S General Description

Glass-passivated double diffused rectifier diode featuring low forward voltage drop, fast reverse recovery and soft recovery characteristic. The device is intended for use in TV receivers and PC monitors. The BY329X series is supplied in the conventional leaded SOD113 package. PINNING PIN 1 2 tab D.

BY329X-1700S Datasheet (33.16 KB)
