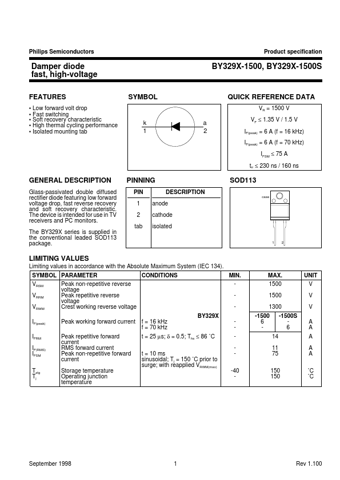

BY329X-1500S Datasheet Preview Page 2 BY329X-1500S Datasheet Preview Page 3

Datasheet Details

Part number:

BY329X-1500S

Manufacturer:

NXP ↗

File Size:

38.96 KB

Description:

Damper diode fast/ high-voltage.

BY329X-1500S, Damper diode fast/ high-voltage

Glass-passivated double diffused rectifier diode featuring low forward voltage drop, fast reverse recovery and soft recovery characteristic.

The device is intended for use in TV receivers and PC monitors.

The BY329X series is supplied in the conventional leaded SOD113 package.

PINNING PIN 1 2 tab D

BY329X-1500S Features

* Low forward volt drop

* Fast switching

* Soft recovery characteristic

* High thermal cycling performance

* Isolated mounting tab BY329X-1500, BY329X-1500S SYMBOL QUICK REFERENCE DATA VR = 1500 V VF ≤ 1.35 V / 1.5 V IF(peak) = 6 A (f = 16 kHz) IF(peak) = 6
