LPC3141 - low-power ARM926EJ microcontrollers

NXP

📥 Download Datasheet

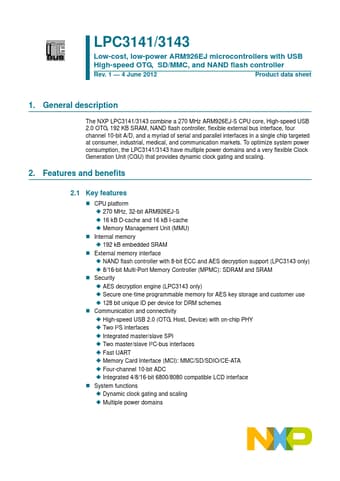

LPC3141 Datasheet Preview — Preview of LPC3141 PDF

Datasheet Details

Part number	LPC3141
Manufacturer	NXP
File Size	802.57 KB
Description	low-power ARM926EJ microcontrollers
Datasheet	LPC3141_NXP.pdf

LPC3141 Product details

Description

The NXP LPC3141/3143 combine a 270 MHz ARM926EJ-S CPU core, High-speed USB 2.0 OTG, 192 KB SRAM, NAND flash controller, flexible external bus interface, four channel 10-bit A/D, and a myriad of serial and parallel interfaces in a single chip targeted at consumer, industrial, medical, and communication markets.

Features

2.1 Key features.
CPU platform.
270 MHz, 32-bit ARM926EJ-S.
16 kB D-cache and 16 kB I-cache.
Memory Management Unit (MMU).
Internal memory.
192 kB embedded SRAM.
External memory interface.
NAND flash controller with 8-bit ECC and AES decryption support (LPC3143 only).
8/16-bit Multi-Port Memory Controller (MPMC): SDRAM and SRAM.
Security.
AES decryption engine (LPC3143 only).
Secure one-time programmable memory for AES key storage and c.
