LPC3154, LPC3152 - (LPC3152 / LPC3154) ARM926EJ microcontrollers

NXP

📥 Download Datasheet

LPC3154 Datasheet Preview — This datasheet PDF includes multiple part numbers: LPC3154, LPC3152. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	LPC3154, LPC3152
Manufacturer	NXP
File Size	1.70 MB
Description	(LPC3152 / LPC3154) ARM926EJ microcontrollers
Datasheet	LPC3152_NXP.pdf
Note	This datasheet PDF includes multiple part numbers: LPC3154, LPC3152. Please refer to the document for exact specifications by model.

LPC3154 Product details

Description

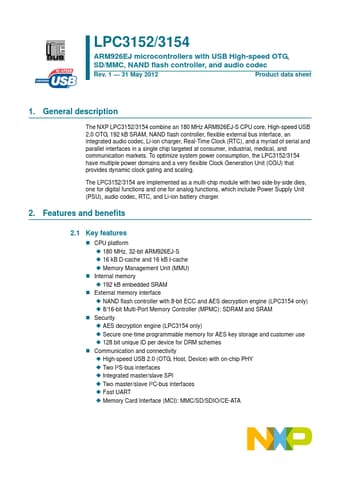

The NXP LPC3152/3154 combine an 180 MHz ARM926EJ-S CPU core, High-speed USB 2.0 OTG, 192 kB SRAM, NAND flash controller, flexible external bus interface, an integrated audio codec, Li-ion charger, Real-Time Clock (RTC), and a myriad of serial and parallel interfaces in a single chip targeted at consumer, industrial, medical, and communication markets.

Features

2.1 Key features.
CPU platform.
180 MHz, 32-bit ARM926EJ-S.
16 kB D-cache and 16 kB I-cache.
Memory Management Unit (MMU).
Internal memory.
192 kB embedded SRAM.
External memory interface.
NAND flash controller with 8-bit ECC and AES decryption engine (LPC3154 only).
8/16-bit Multi-Port Memory Controller (MPMC): SDRAM and SRAM.
Security.
AES decryption engine (LPC3154 only).
Secure one-time programmable memory for AES key storage and cu.
