NXP Semiconductors Data sheet: Technical Data 17 mOhm and 7.0 mOhm high-side switches The 12XS6 is the latest SMARTMOS achievement in automotive lighting drivers.

It belongs to an expanding family, which helps to control and diagnose incandescent lamps and light-emitting diodes (LEDs), with enhanced precision.

It combines flexibility through daisy chainable SPI 5.0 MHz, extended digital and analog feedbacks, safety, and robustness.

Output edge shaping helps to improve electromagnetic performance

MC07XS6517BEK Features

* Quad or penta high-side switches with high transient capability

* 16-bit 5.0 MHz SPI control of overcurrent profiles, channel control including PWM duty cycles, output on and off open load detections, thermal shutdown and prewarning, and fault reporting

* Output current mon

MC07XS6517BEK-NXP.pdf

Preview of MC07XS6517BEK PDF

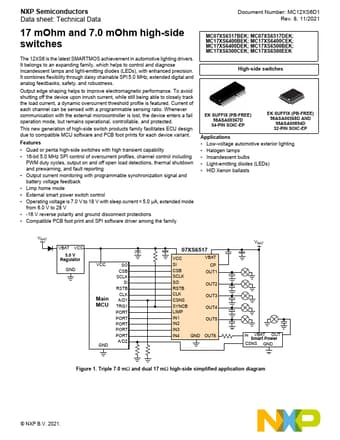

MC07XS6517BEK Datasheet Preview Page 2 MC07XS6517BEK Datasheet Preview Page 3

Datasheet Details

Part number:

MC07XS6517BEK

Manufacturer:

NXP ↗

File Size:

1.13 MB

Description:

High-side switche.
