MC08XS6421CEK, MC08XS6421BEK Datasheet - NXP

MC08XS6421CEK, MC08XS6421BEK, high-side switch

NXP Semiconductors Data sheet: Technical Data Document Number: MC12XS6D4 Rev.6.0, 1/2021 Dual 8.0 mOhm and dual 21 mOhm high-side switch MC08XS642.

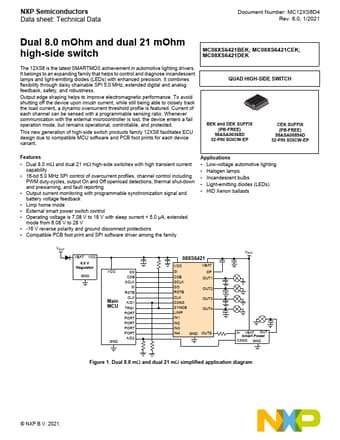

datasheet Preview Page 1 from Datasheet4u.com

MC08XS6421BEK-NXP.pdf

MC08XS6421CEK Datasheet Preview — This datasheet PDF includes multiple part numbers: MC08XS6421CEK, MC08XS6421BEK. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MC08XS6421CEK, MC08XS6421BEK

Manufacturer:

NXP ↗

File Size:

1.62 MB

Description:

high-side switch

Note:

This datasheet PDF includes multiple part numbers: MC08XS6421CEK, MC08XS6421BEK.
Please refer to the document for exact specifications by model.

Features

* Dual 8.0 mΩ and dual 21 mΩ high-side switches with high transient current capability
* 16-bit 5.0 MHz SPI control of overcurrent profiles, channel control including PWM duty-cycles, output On and Off openload detections, thermal shut-down and prewarning, and fault reporting

Applications

* Low-voltage automotive lighting
* Halogen lamps
* Incandescent bulbs
* Light-emitting diodes (LEDs)
* HID Xenon ballasts VBAT VBAT VCC 5.0 V Regulator GND VCC Main MCU GND SO CSB SCLK SI RSTB CLK A/D1 TRG1 PORT PORT PORT PORT PORT A/D2 08XS6421 VCC SI
