MC08XS6421DEK, MC08XS6421BEK high-side switch

NXP

Description

NXP Semiconductors Data sheet: Technical Data Document Number: MC12XS6D4 Rev.6.0, 1/2021 Dual 8.0 mOhm and dual 21 mOhm high-side switch MC08XS642.

📥 Download Datasheet

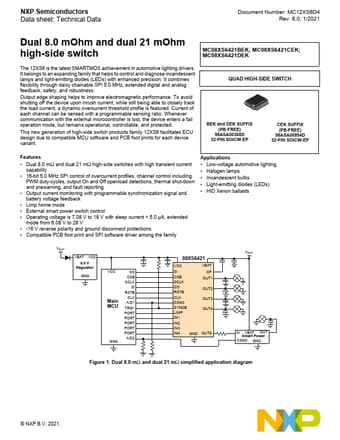

MC08XS6421DEK Datasheet Preview — This datasheet PDF includes multiple part numbers: MC08XS6421DEK, MC08XS6421BEK. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: MC08XS6421DEK, MC08XS6421BEK
Manufacturer: NXP ↗
File Size: 1.62 MB
Datasheet: MC08XS6421BEK-NXP.pdf
Description: high-side switch
Note: This datasheet PDF includes multiple part numbers: MC08XS6421DEK, MC08XS6421BEK.
Please refer to the document for exact specifications by model.

Features

* Dual 8.0 mΩ and dual 21 mΩ high-side switches with high transient current capability
* 16-bit 5.0 MHz SPI control of overcurrent profiles, channel control including PWM duty-cycles, output On and Off openload detections, thermal shut-down and prewarning, and fault reporting

Applications

* Low-voltage automotive lighting
* Halogen lamps
* Incandescent bulbs
* Light-emitting diodes (LEDs)
* HID Xenon ballasts VBAT VBAT VCC 5.0 V Regulator GND VCC Main MCU GND SO CSB SCLK SI RSTB CLK A/D1 TRG1 PORT PORT PORT PORT PORT A/D2 08XS6421 VCC SI
