MC33771BSP1AE, MC33771B_SDS - Battery cell controller

MC33771BSP1AE Description

MC33771B_SDS Battery cell controller IC Rev.7.0 * 10 May 2021 Product short data sheet 1 General .
The 33771 is a SMARTMOS lithium-ion battery cell controller IC designed for automotive applications, such as hybrid electric (HEV) and electric vehicl.

MC33771BSP1AE Features

* 9.6 V ≤ VPWR ≤ 63 V operation, 75 V transient
* 7 to 14 cells management
* Isolated 2.0 Mbps differential communication or 4.0 Mbps SPI
* Addressable on initialization
* 0.8 mV maximum total voltage measurement error
* Synchronized cell voltage/curre

MC33771BSP1AE Applications

* such as hybrid electric (HEV) and electric vehicles (EV) along with industrial applications, such as energy storage systems (ESS) and uninterruptible power supply (UPS) systems. The device performs ADC conversions of the differential cell voltages and current, as well as battery coulomb counting an

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MC33771BSP1AE, MC33771B_SDS. Please refer to the document for exact specifications by model.

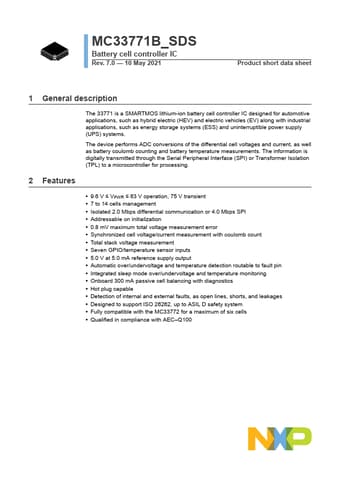

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MC33771BSP1AE, MC33771B_SDS
Manufacturer
NXP ↗
File Size
508.20 KB
Datasheet
MC33771B_SDS-NXP.pdf
Description
Battery cell controller
Note
This datasheet PDF includes multiple part numbers: MC33771BSP1AE, MC33771B_SDS.
Please refer to the document for exact specifications by model.
