MMBZ5V6AL - Low capacitance unidirectional double ESD protection diodes

NXP

The MMBZ5V6AL by NXP is a Low capacitance unidirectional double ESD protection diodes. Below is the official datasheet preview.

📥 Download Datasheet

MMBZ5V6AL Low capacitance unidirectional double ESD protection diodes by NXP - Datasheet Preview — Official preview page of the **MMBZ5V6AL** Low capacitance unidirectional double ESD protection diodes datasheet (NXP).

Datasheet Details

Part number	MMBZ5V6AL
Manufacturer	NXP
File Size	125.70 KB
Description	Low capacitance unidirectional double ESD protection diodes
Datasheet	MMBZ5V6AL-NXP.pdf

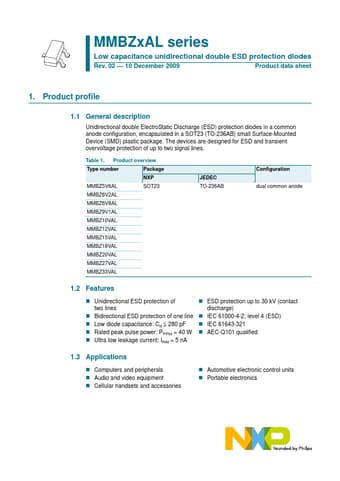

Additional preview pages of the MMBZ5V6AL datasheet.

MMBZ5V6AL Product details

Description

Unidirectional double ElectroStatic Discharge (ESD) protection diodes in a common anode configuration, encapsulated in a SOT23 (TO-236AB) small Surface-Mounted Device (SMD) plastic package.

Features

Unidirectional ESD protection of.
ESD protection up to 30 kV (contact two lines discharge).
Bidirectional ESD protection of one line.
IEC 61000-4-2; level 4 (ESD).
Low diode capacitance: Cd ≤ 280 pF.
Rated peak pulse power: PPPM = 40 W.
Ultra low leakage current: IRM = 5 nA.
IEC 61643-321.
AEC-Q101 qualified 1.3.
