PESD5V0S1ULD Unidirectional ESD protection diode

PESD5V0S1ULD Description

PESD5V0S1ULD Unidirectional ESD protection diode Rev.1 * 19 October 2010 Product data sheet 1.Product profile 1.1 General .
Unidirectional ElectroStatic Discharge (ESD) protection diode designed to protect one signal line from the damage caused by ESD and other transients.

PESD5V0S1ULD Features

* ESD protection of one line
* Ultra small SMD plastic package
* Solderable side pads
* Package height typ. 0.37 mm
* Low clamping voltage: VCL = 20 V
* AEC-Q101 qualified
* ESD protection up to 30 kV
* IEC 61000-4-2; level 4 (ESD)

PESD5V0S1ULD Applications

* Computers and peripherals
* Audio and video equipment
* Communication systems
* Portable electronics 1.4 Quick reference data Table 1. Quick reference data Tamb = 25 °C unless otherwise specified. Symbol Parameter Conditions VRWM Cd reverse standoff voltage

📥 Download Datasheet

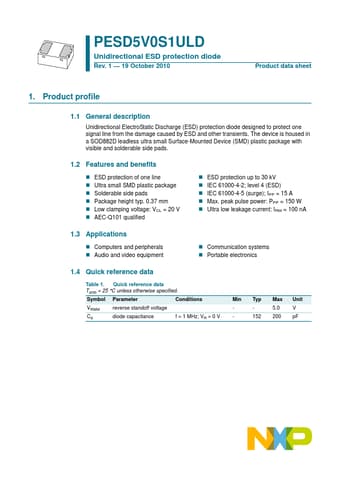

Preview of PESD5V0S1ULD PDF
