PESD5V0S1BA Datasheet, Diode, nexperia

PESD5V0S1BA Features

  • Diode
  • Bidirectional ESD protection of one line
  • Max. peak pulse power: PPPM = 130 W
  • Low clamping voltage: V(CL)R = 14 V
  • Low leakage current: IRM = 5 nA

PDF File Details

Part number:

PESD5V0S1BA

Manufacturer:

nexperia ↗

File Size:

192.62kb

Download:

📄 Datasheet

Description:

Bidirectional esd protection diode. Bidirectional ElectroStatic Discharge (ESD) protection diode in very small SOD323 (SC-76) SM plastic package designed to protect one

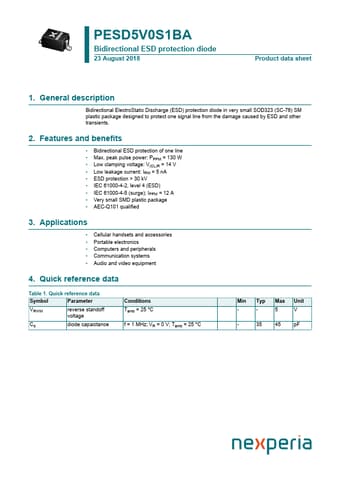

Datasheet Preview: PESD5V0S1BA 📥 Download PDF (192.62kb)
Page 2 of PESD5V0S1BA Page 3 of PESD5V0S1BA

PESD5V0S1BA Application

  • Applications
  • Cellular handsets and accessories
  • Portable electronics
  • Computers and peripherals
  • Communication
