PESD5V0C1BSF Ultra low capacitance bidirectional ESD protection diode

PESD5V0C1BSF Description

PESD5V0C1BSF Ultra low capacitance bidirectional ESD protection diode 6 May 2015 Product data sheet 1.General .
Ultra low capacitance bidirectional ElectroStatic Discharge (ESD) protection diode, part of the TrEOS Protection family.

PESD5V0C1BSF Features

* Bidirectional ESD protection of one line
* Extremely low diode capacitance Cd = 0.2 pF
* ESD protection up to ±20 kV according to IEC 61000-4-2

PESD5V0C1BSF Applications

* ESD and surge protection for:
* ultra high-speed datalines
* very sensitive interface lines
* generic interface lines in portable electronics, communication, consumer and computing devices. 4. Quick reference data Table 1. Symbol Cd VRWM Quick reference data Parameter diod

📥 Download Datasheet

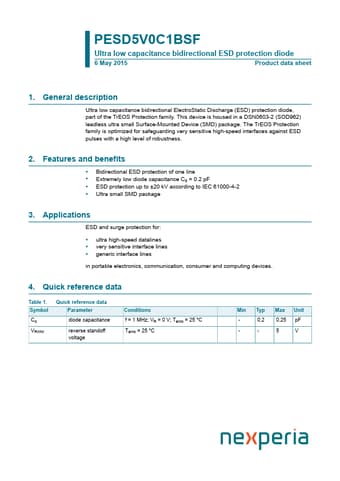

Preview of PESD5V0C1BSF PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PESD5V0C1BSF
Manufacturer
nexperia ↗
File Size
656.03 KB
Datasheet
PESD5V0C1BSF-nexperia.pdf
Description
Ultra low capacitance bidirectional ESD protection diode
