PESD5V0F5UF Femtofarad unidirectional fivefold ESD protection array

PESD5V0F5UF Description

XSON6 PESD5V0F5UF Femtofarad unidirectional fivefold ESD protection array Rev.1 * 17 July 2012 Product data sheet 1.Product profile 1..
Femtofarad capacitance unidirectional ElectroStatic Discharge (ESD) protection diode array designed to protect up to five signal lines from the damage.

PESD5V0F5UF Features

* ESD protection of up to 5 lines
* Low diode capacitance Cd = 0.55 pF
* Ultra low leakage current IRM < 1 nA
* ESD protection up to 8 kV
* IEC 61000-4-2; level 4 (ESD)
* IEC 61000-4-5 (surge); IPPM = 2 A

📥 Download Datasheet

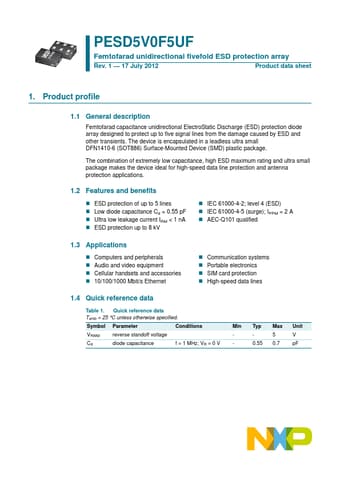

Preview of PESD5V0F5UF PDF
