PESD5V0S2UQ

(PESDxS2UQ) Double Esd Protection Diode

PESD5V0S2UQ Features

* Uni-directional ESD protection of up to two lines

* Max. peak pulse power: Ppp = 150 W at tp = 8/20 µs

* Low clamping voltage: V(CL)R = 20 V at Ipp = 15 A

* Low reverse leakage current: IRM < 1 nA

* ESD protection > 30 kV

* IEC 61000-4-2; level 4 (ES

PESD5V0S2UQ General Description

Uni-directional double ESD protection diodes in a SOT663 plastic package. Designed to protect up to two transmission or data lines from ElectroStatic Discharge (ESD) damage. MARKING TYPE NUMBER PESD3V3S2UQ PESD5V0S2UQ PESD12VS2UQ PESD15VS2UQ PESD24VS2UQ Note 1.
* = p : made in Hong Kong.
* =.

PESD5V0S2UQ Datasheet (148.74 KB)

Preview of PESD5V0S2UQ PDF

Datasheet Details

Part number:

PESD5V0S2UQ

Manufacturer:

NXP ↗

File Size:

148.74 KB

Description:

(pesdxs2uq) double esd protection diode.

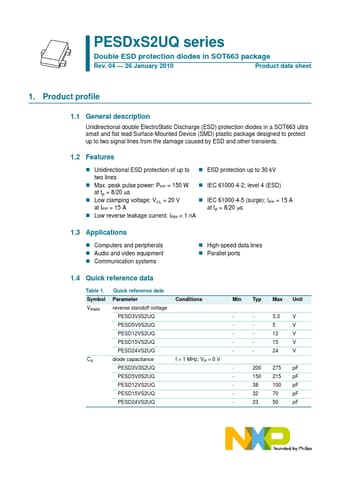

DISCRETE SEMICONDUCTORS DATA SHEET M3D793 www.DataSheet4U.com PESDxS2UQ series Double ESD protection diodes in SOT663 package Product specification.
