PLC42VA12

CMOS programmable multi-function PLD

PLC42VA12 Features

* High-speed EPROM-based CMOS Multi-Function PLD

* Super set of 22V10, 32VX10 and 20RA10 PAL® ICs PIN CONFIGURATIONS FA and N Packages I0/CLK I1 I2 I3 I4 I5 I6 I7 I8 1 2 3 4 5 6 7 8 9 24 VCC 23 M9 22 M8 21 M7 20 M6 19 M5 18 M4 17 M3 16 M2 15 M1 14 M0 13 I9/OE

* Two fully p

PLC42VA12 General Description

The new PLC42VA12 CMOS PLD from Philips Semiconductors exhibits a unique combination of the two architectural concepts that revolutionized the PLD marketplace. The Philips Semiconductors unique Output Macro Cell (OMC) embodies all the advantages and none of the disadvantages associated with the “V” .

PLC42VA12 Datasheet (195.32 KB)

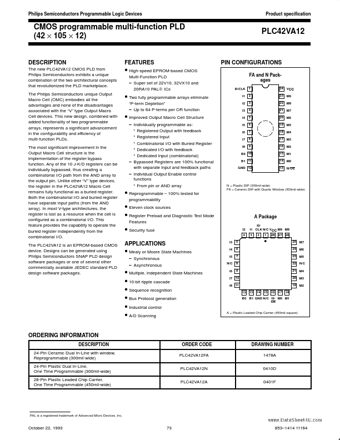

Preview of PLC42VA12 PDF
