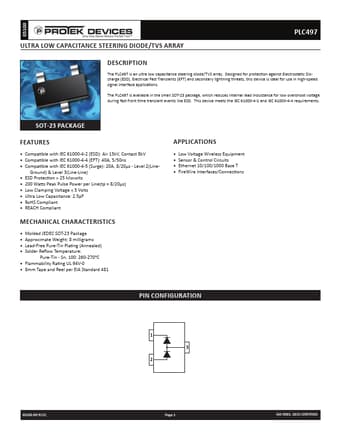

PLC497 - ULTRA LOW CAPACITANCE STEERING DIODE/TVS ARRAY

Protek Devices

Datasheet Details

Part number	PLC497
Manufacturer	Protek Devices
File Size	567.64 KB
Description	ULTRA LOW CAPACITANCE STEERING DIODE/TVS ARRAY
Datasheet	PLC497_ProtekDevices.pdf

The PLC497 is an ultra low capacitance steering diode/TVS array.

Compatible with IEC 61000-4-2 (ESD): Air 15kV, Contact 8kV.
Compatible with IEC 61000-4-4 (EFT): 40A, 5/50ns.
Compatible with IEC 61000-4-5 (Surge): 20A, 8/20µs - Level 2(Line- Ground) & Level 3(Line-Line).
ESD Protection > 25 kilovolts.
200 Watts Peak Pulse Power per Line(tp = 8/20µs).
Low Clamping Voltage < 5 Volts.
Ultra Low Capacitance: 2.5pF.
RoHS Compliant.
REACH Compliant.
