PLC496, ULTRA LOW CAPACITANCE TVS ARRAY

05109 PLC496 ULTRA LOW CAPACITANCE TVS ARRAY APPLICATIONS ✔ Sensor & Control Circuits ✔ FireWire ✔ Ethernet - 10/100/1000 Base T ✔ Handheld Electroni.

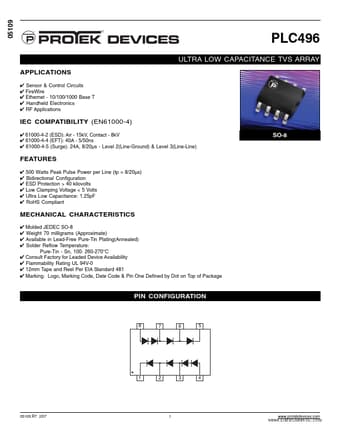

datasheet Preview Page 1 from Datasheet4u.com

PLC496_ProtekDevices.pdf

PLC496 Datasheet Preview — Preview of PLC496 PDF

Datasheet Details

Part number:

PLC496

Manufacturer:

Protek Devices

File Size:

77.61 KB

Description:

ULTRA LOW CAPACITANCE TVS ARRAY

Features

* ✔ ✔ ✔ ✔ ✔ ✔ 500 Watts Peak Pulse Power per Line (tp = 8/20µs) Bidirectional Configuration ESD Protection > 40 kilovolts Low Clamping Voltage < 5 Volts Ultra Low Capacitance: 1.25pF RoHS Compliant MECHANICAL CHARACTERISTICS ✔ Molded JEDEC SO-8 ✔ Weight 70 milligrams (Approximate) ✔ Available in Lead

Applications

* ✔ Sensor & Control Circuits ✔ FireWire ✔ Ethernet - 10/100/1000 Base T ✔ Handheld Electronics ✔ RF Applications IEC COMPATIBILITY (EN61000-4) ✔ 61000-4-2 (ESD): Air - 15kV, Contact - 8kV ✔ 61000-4-4 (EFT): 40A - 5/50ns ✔ 61000-4-5 (Surge): 24A, 8/20µs - Level 2(Line-Ground) & Level 3(Line-Line) SO
