RX1214B170W

Microwave power transistor

NXP

RX1214B170W Features

* Suitable for short and medium pulse applications up to 1 ms pulse width, 10% duty factor

* Diffused emitter ballasting resistors improve ruggedness

* Interdigitated emitter-base structure provides high emitter efficiency

* Gold metallization with barrier realizes ve

RX1214B170W General Description

NPN silicon planar epitaxial microwave power transistor in a SOT439A metal ceramic flange package, with base connected to flange. ok, 4 columns RX1214B170W QUICK REFERENCE DATA Microwave performance up to Tmb = 25 °C in a common base class C narrowband ampliﬁer. MODE OF OPERATION Class C CONDITION.

RX1214B170W Datasheet (74.63 KB)

RX1214B170W Datasheet Preview — Preview of RX1214B170W PDF

Datasheet Details

Part number:

RX1214B170W

Manufacturer:

NXP ↗

File Size:

74.63 KB

Description:

Microwave power transistor.

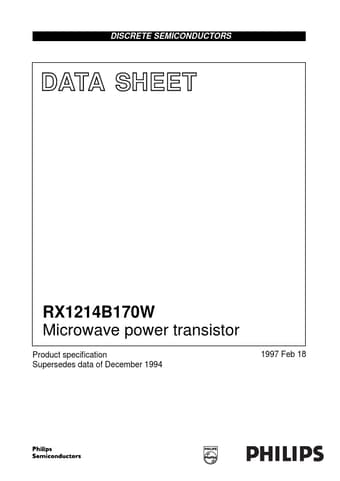

DISCRETE SEMICONDUCTORS DATA SHEET RX1214B170W Microwave power transistor Product speciﬁcation Supersedes data of December 1994 1997 Feb 18 Philips.
